Bucket elevator

NE, NSE bucket elevator

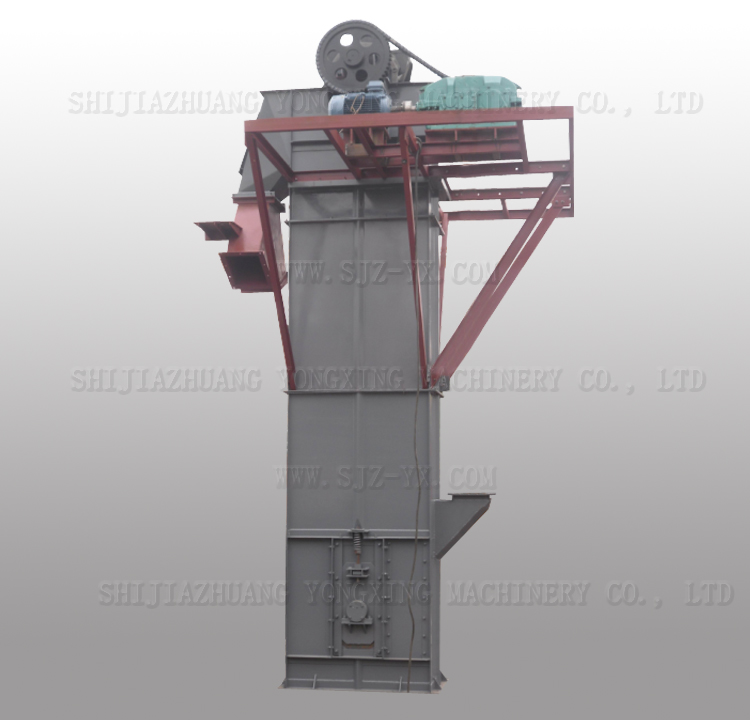

NE, NSE series bucket elevator is suitable for conveying powder, small particles and small pieces of dry materials vertically. This series of equipment has the advantages of simple structure, stable and reliable operation, convenient installation and maintenance, high lifting height and good sealing performance. It is widely used in metallurgy, electric power, chemical industry, mining, building materials, grain and oil industries.


NE, NSE series bucket elevator is suitable for conveying powder, small particles and small pieces of dry materials vertically. This series of equipment has the advantages of simple structure, stable and reliable operation, convenient installation and maintenance, high lifting height and good sealing performance. It is widely used in metallurgy, electric power, chemical industry, mining, building materials, grain and oil industries.

Structure features and working principle:

NE and NSE series bucket elevator is composed of tail part, head part, bucket chain component, driving device component and fully enclosed casing. There is no leakage of materials during the operation of the equipment. The lifting conveyor chain adopts stamping plate chain, which is divided into single chain and double chain layout. The head is equipped with backstop, which is reliable. The lifting height of the material inlet and outlet of the equipment can be flexibly designed and arranged according to the process requirements.

The material is uniformly introduced into the hopper fixed on the lifting chain for continuous closed operation through the equipment inlet and outlet, and the material is lifted from the tail inlet to the head outlet to discharge, so as to realize single point feeding, single point gravity or mixed unloading.

The lifting conveyor chain adopts the heavy hammer lever type automatic tension device to ensure that the lifting chain always maintains a moderate tension device in operation, so that the equipment is in the best operation state.

Main technical parameters of NE bucket elevator:

Model	Conveying capacitym3/h	Bucket capacityL	Bucket widthmm	Bucket pitchmm	Bucket speedm/s	Spindle speedr/min	Maximum material widthmm
NE15	15	2.5	250	203.2	0.5	19.5	--
NE30	32	7.8	300	304.8	0.5	16.45	65
NE50	60	14.7	300	304.8	0.5	16.45	65
NE100	110	35	400	400	0.5	14.13	95
NE150	170	52.2	600	400	0.5	14.13	95
NE200	210	84.6	600	500	0.5	10.9	125
NE300	320	127.5	600	500	0.5	10.9	125
NE400	380	182.6	700	600	0.5	8.3	145
NE500	470	260.9	700	700	0.5	7.1	165
NE600	600	300.2	700	700	0.5	7.1	165
NE800	800	501.3	800	800	0.5	7.1	195

Main technical parameters of NSE bucket elevator:

Model	Conveying capacity m3/h	Bucket capacityL	Maximum chain speedm/min	Maximum particle size of materialmm
				Percentage%
				10	25	50	75	100
NSE100	170	73	65.4	20	15	10	7	5
NSE200	230	97	65.4	35	30	20	15	10
NSE300	308	121	65.4	35	30	20	15	10
NSE400	360	157	65.4	50	40	30	25	20
NSE500	480	210	65.4	50	40	30	25	20
NSE600	600	240	66	50	40	30	25	20
NSE700	700	280	66	65	60	40	35	30
NSE800	800	320	66	65	60	40	35	30
NSE1000	1000	391	66	65	60	40	35	30
